52 24 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove MIDDLE HEAD RESTRAINT

Press center armrest cover upwards and remove towards front.

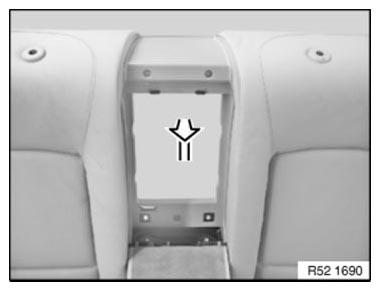

Fig 1: Pressing Center Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure cover is correctly seated in backrest frame.

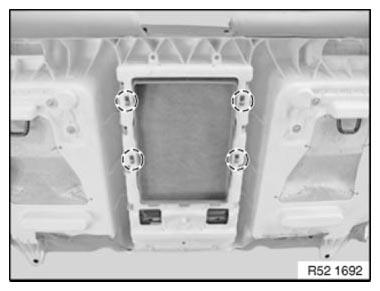

Fig 2: Identifying Backrest Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 24 4AZ .

Remove armrest towards front.

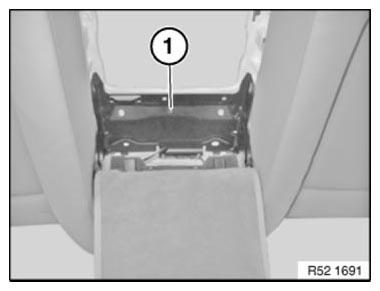

Fig 3: Identifying Armrest Screw

Courtesy of BMW OF NORTH AMERICA, INC.
