52 25 405 Replacing left or right rear seat cover

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LEFT OR RIGHT REAR SEAT

Lever out cover welt in marked area.

Disconnect all cable straps from wiring harness.

Installation note:

Replace defective cable straps.

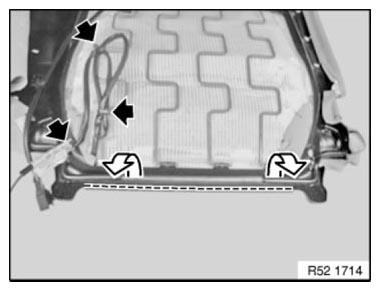

Fig 1: Disconnecting Cable Straps From Wiring Harness

G06895814

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked areas.

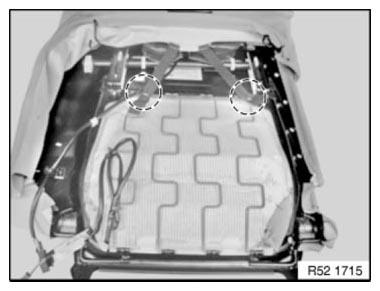

Fig 2: Identifying Clamps Releasing Areas

G06895815

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

Release all clamps in designated areas
Remove seat cover from upholstery
Remove all remaining clamps from seat cover and/or upholstery

Fig 3: Identifying Clamps Releasing Areas

G06895816

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

Fig 4: Pulling Trim Wires Out Of Seat Cover

G06895817

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

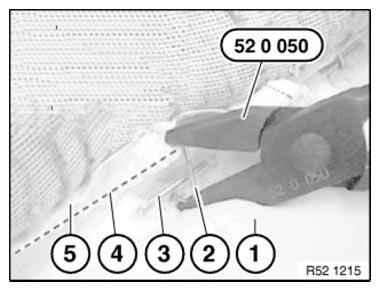

Fig 5: Bending Clamp Closed With Pliers (52 0 050)

G06895818

Courtesy of BMW OF NORTH AMERICA, INC.
