52 25 010 Removing and installing left or right rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Set seat angle to uppermost position (+Z)
Set forward/back seat adjustment to maximum forward position (-X)

IMPORTANT: Do not actuate the seat adjustment while the rear seat is removed.

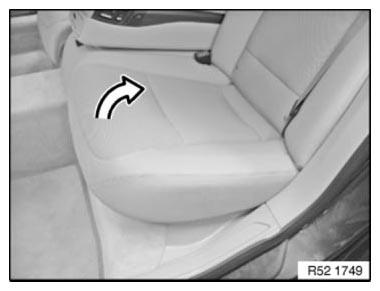

Unclip left or right seat in upward direction from latch mechanism.

Disconnect all plug connections (seat heating, air conditioning).

Installation note:

Feed in seat belt buckle through designated opening.

Adjust transverse pipe of seat pan manually to latch mechanism in seat frame.

Fig 1: Feeding Seat Belt Buckle

Courtesy of BMW OF NORTH AMERICA, INC.

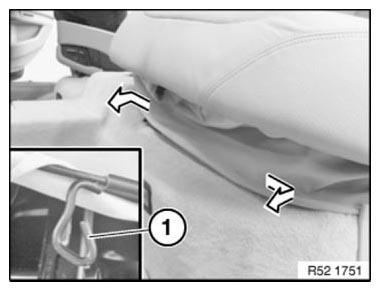

First lift out retaining bracket (1) from seat frame toward the outside (door side) in direction of arrow.

Then lift out retaining bracket (1) from seat frame toward the inside (tunnel side) in direction of arrow.

Remove seat.

Fig 2: Lifting Out Retaining Bracket From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

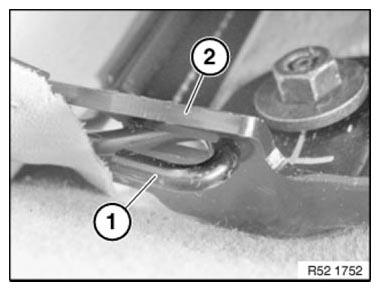

First attach retaining bracket (1) on inside (tunnel side) in fixture (2) of seat frame.

Then attach retaining bracket (1) on outside (door side) in fixture (2) of seat frame.

Make sure retaining bracket (1) is correctly seated in mounting (2).

Fig 3: Identifying Retaining Bracket And Seat Frame Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Removing SEAT COVER WITH UPHOLSTERY .
Remove A/C INSULATING BOX
