52 25 025 Removing and installing complete center cushion section for rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ARMREST FOR REAR SEAT BACKREST

Release screws (1).

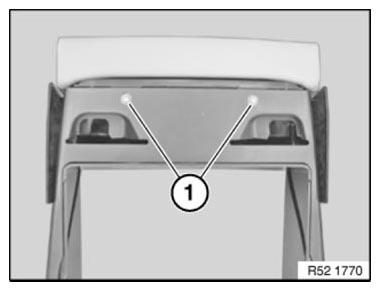

Fig 1: Identifying Rear Seat Center Cushion Screws

G06895748

Courtesy of BMW OF NORTH AMERICA, INC.

Remove frame (1) in direction of arrow.

Installation:

Make sure retaining lugs are correctly seated in guide.

The frame must be replaced if the retaining lugs are faulty.

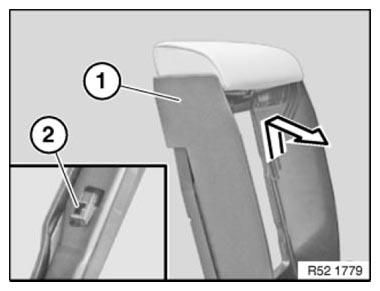

Fig 2: Removing Frame

G06895749

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect spring (1).

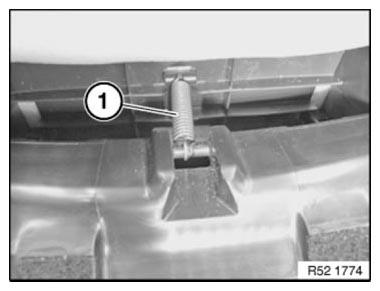

Fig 3: Identifying Spring

G06895750

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cushion section on left and right in succession:

Press retaining tab.
Press latch mechanism outwards and pull seat cushion upwards.

Unclip cushion section towards rear from pivot bearing.

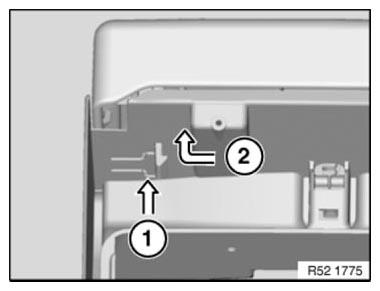

Fig 4: Pressing Latch Mechanism And Pulling Seat Cushion Upwards

G06895751

Courtesy of BMW OF NORTH AMERICA, INC.

For a better overview, the following operation is shown with the seat cushion removed.

Installation:

Make sure cushion section is correctly seated in pivot bearing.

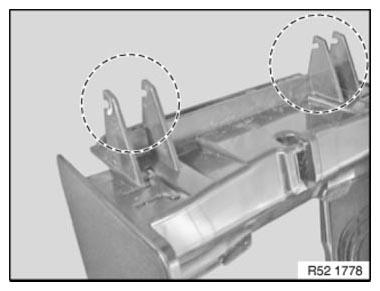

Fig 5: Identifying Cushion Section

G06895752

Courtesy of BMW OF NORTH AMERICA, INC.
