52 14 032 Removing and installing/replacing backrest frame for front passenger seat (2009-2011)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT PASSENGER SEAT
Partially remove BACKREST COVER for front seat.

NOTE: For purposes of clarity, the following operations are shown with the backrest cover removed.

Detach clips (2).

Installation note:

Replace faulty clips (2).

Unlock plug connections (1) and disconnect.

Detach wiring harness clamps from backrest frame.

Feed wiring harness out of backrest frame.

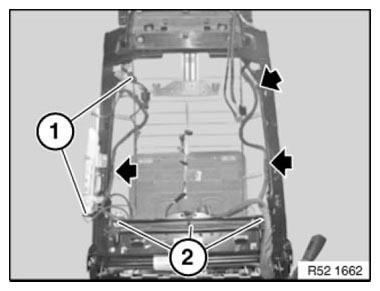

Fig 1: Identifying Plug Connections And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left and right clips (1).

Unhook seat covers (2) on left and right.

Release left and right screws (3).

Tightening torque 52 10 2AZ .

Remove backrest frame.

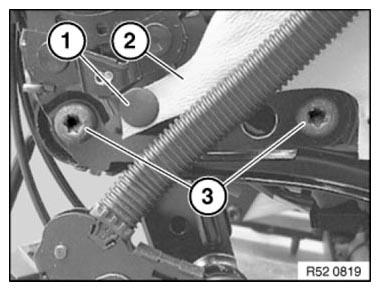

Fig 2: Identifying Seat Covers, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, remove lumbar support with drive and valve block. See 6766010 REMOVING AND INSTALLING/REPLACING LUMBAR SUPPORT DRIVE MECHANISM ON FRONT SEAT, LEFT OR RIGHT .
Remove SIDE AIRBAG
Remove complete BACKREST COVER .
Remove CARRIER PLATE FOR REAR CABIN ENTERTAINMENT

NOTE: The new backrest frame part contains all the drives.

Version with rear passenger compartment monitor (RSE) only:

Blind rivet threaded pins for carrier plate must be reset.

Attach blind rivet thread pins with ZS 308 rivet gun (see BMW Web catalogue).

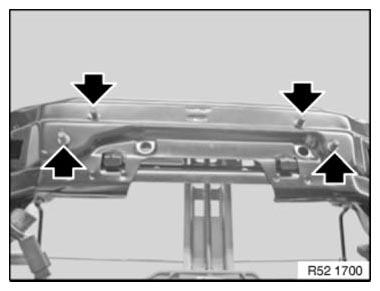

Fig 3: Locating Rivet Threaded Pins On Carrier Plate

Courtesy of BMW OF NORTH AMERICA, INC.
