67 65 019 Removing and installing/replacing drive for left or right roller sun blind

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

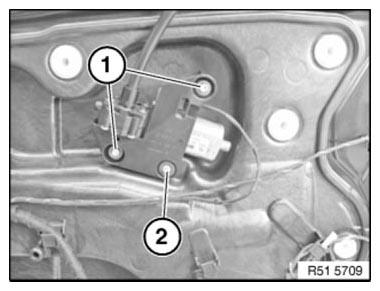

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 1: Identifying Door Trim Panel Mounting Screws

G06886635

Courtesy of BMW OF NORTH AMERICA, INC.

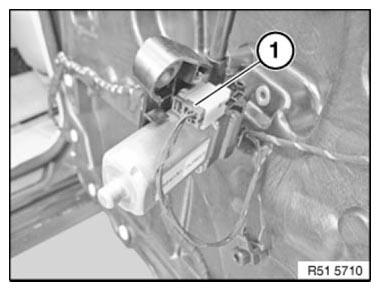

Unfasten plug connection (1) and disconnect.

Pull flex shaft out of drive.

Installation:

Make sure flex shaft is correctly seated in drive.

Fig 2: Identifying Roller Sun Blind Drive Plug Connection

G06886636

Courtesy of BMW OF NORTH AMERICA, INC.

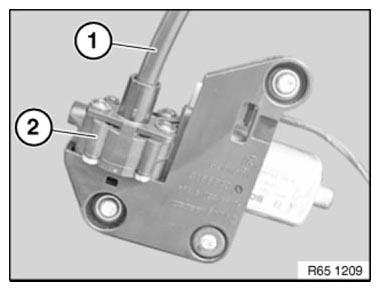

Withdraw flex shaft (1) from gearing (2).

Installation:

Make sure flex shaft (1) is correctly seated in gearing (2).

Fig 3: Identifying Flex Shaft And Gearing

G06886637

Courtesy of BMW OF NORTH AMERICA, INC.
