67 65 010 Removing and installing or replacing drive unit for roller sun blind
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR WINDOW ROLLER BLIND

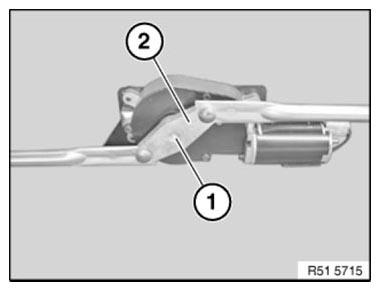

Release screws (1).
Remove drive linkage (2).
Installation:
Drive linkage (2) can only be installed in one position.

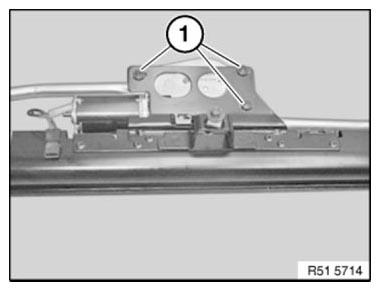

Release screws (1).
Remove drive.
Installation:
Ensure correct cable routing.
