51 46 013 Removing and installing/replacing rear window roller blind

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR STORAGE SHELF WITH ROLLER SUNBLIND .

IMPORTANT: Risk of damage!

Rod eyes of roller sunblind could break.

Carefully pull out rear window roller blind (1) a little.

Lever out protective cap (2) on left or right with plastic wedge.

Fig 1: Removing Protective Cap

G06885883

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protective caps must not be damaged or missing.

If necessary, replace protective caps.

Make sure protective caps are correctly seated in rear storage shelf.

Fig 2: Identifying Protective Caps

G06885884

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out shelf (3) over rear groove (1) of rear window roller blind.

Pull front guide (2) out of shelf (3) and remove roller sunblind downwards.

Installation note:

Make sure front guide (2) is correctly seated in rear storage shelf.

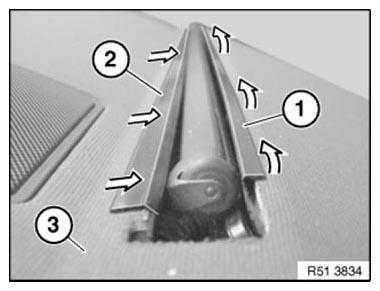

Fig 3: Pulling Front Guide Out Of Shelf

G06885885

Courtesy of BMW OF NORTH AMERICA, INC.
