67 11 555 Removing and installing/replacing actuator drive for fuel filler flap: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL

Unclip cable guide (1) and plastic clip (2).

Partially remove insulating mat (3) in working area.

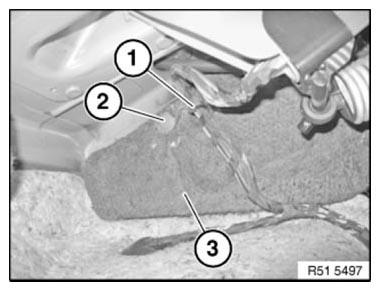

Fig 1: Identifying Insulating Mat With Cable Guide And Plastic Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1)

Carefully feed actuator drive (3) out of guides (4).

Unlock plug connection (5) and disconnect.

IMPORTANT: Risk of damage:

To prevent damaging locking pin guide (2), do not tilt actuator drive (3).

Installation note:

Make sure actuator drive for fuel filler flap is correctly adjusted. It must be possible to lock or unlock the fuel filler flap completely.

Fig 2: Identifying Actuator Drive, Guide, Plug Connection, Locking Pin Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
