51 47 161 Removing and installing/replacing right luggage compartment wheel arch panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT STORAGE COMPARTMENT
Remove TRIM FOR REAR APRON
Remove FLAP IN LUGGAGE COMPARTMENT PANEL ON RIGHT
F02 only, with optional rear air conditioning and initial equipment from 11/2010: Remove luggage compartment partition wall

If necessary, unclip cover (1).

Unclip emergency actuator (3) from emergency actuator tensioning strap (2) with a suitable tool.

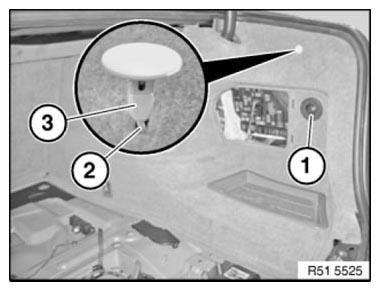

Fig 1: Identifying Cover, Emergency Actuator And Emergency Actuator Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Further procedure is identical to:

Removing and installing/replacing LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL
