54 12 115 Removing and installing glass slide/tilt sunroof panel
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove GAITER on left and right
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

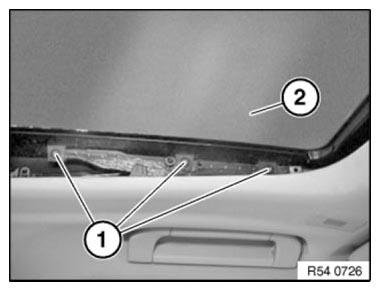

Release left and right screws (1).
Remove glass slide/tilt sunroof cover (2) towards top.
Installation note:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
Adjust and initialize glass slide/tilt sunroof cover. See ADJUSTING GLASS SLIDE/TILT SUNROOF COVER and NOTES ON GLASS SLIDE/TILT SUNROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
