54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Handle the gaiter with extreme care throughout the work procedure.
Soft component is highly susceptible to tearing and kinking.
Grip the gaiter by its attachment strip and do not pull on the rubber (risk of damage!).
Glass slide sunroof lid in fan setting:

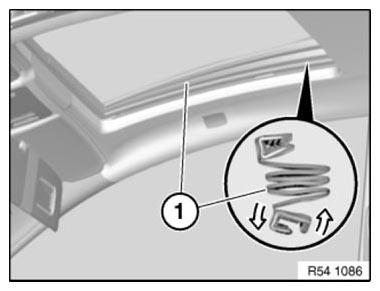

- Carefully detach gaiter (1) at top from guide.
- Twist gaiter (1) out of lower guide.
Installation:
Check that connection strip is firmly seated on guide.
If necessary, replace faulty gaiter.
