51 24 326 Removing and installing/replacing right tension spring with damper for tailgate

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

WARNING: Support tailgate in fully opened position with suitable apparatus. Danger of injury!

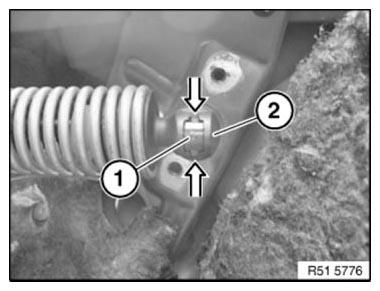

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Retainer

G06885674

Courtesy of BMW OF NORTH AMERICA, INC.

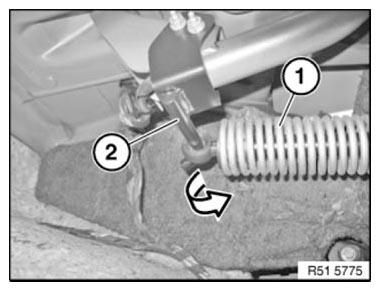

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring With Damper From Tailgate Hinge

G06885675

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

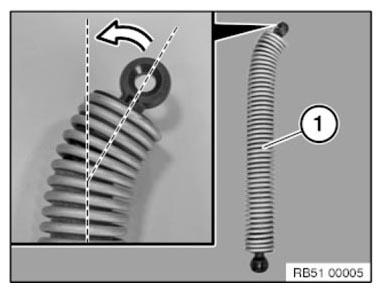

On refitting the tension springs (1), these have to be bent to the original condition by hand.

Fig 3: Bending Tension Spring

G06885676

Courtesy of BMW OF NORTH AMERICA, INC.

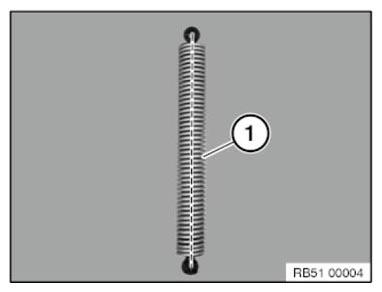

The graphic shows the tension springs (1) in original condition.

Fig 4: Identifying Tension Spring

G06885677

Courtesy of BMW OF NORTH AMERICA, INC.
