51 24 325 Removing and installing/replacing left tension spring for rear lid

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL on left

WARNING: Support tailgate in fully opened position with suitable apparatus. Danger of injury!

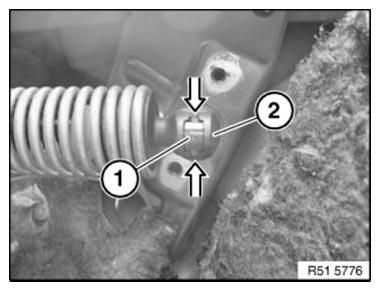

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Retainer

G06885664

Courtesy of BMW OF NORTH AMERICA, INC.

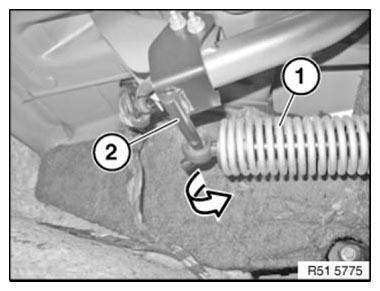

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring With Damper From Tailgate Hinge

G06885665

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

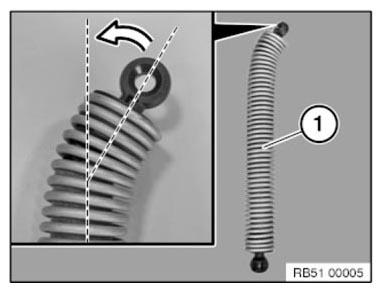

If the removed tension spring (1) is going to be installed again, the tension spring (1) may need to be bent into its original condition by hand.

Fig 3: Bending Tension Spring

G06885666

Courtesy of BMW OF NORTH AMERICA, INC.

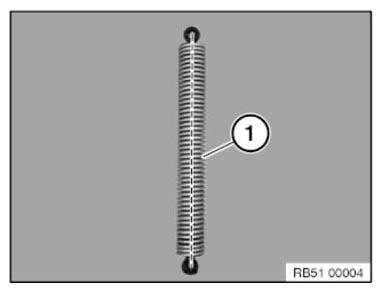

Picture shows tension spring (1) in original condition.

Fig 4: Identifying Tension Spring

G06885667

Courtesy of BMW OF NORTH AMERICA, INC.
