51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM STRIP FROM REAR LID CENTER SECTION

Release screws (1).

Tightening torque 51 24 02AZ .

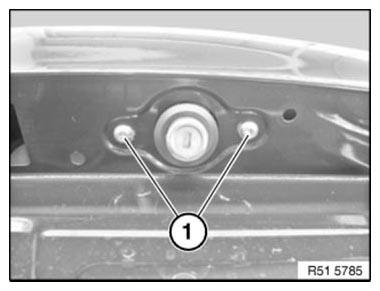

Fig 1: Identifying Lock Screws

G06885668

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Press counter-supports (1) at back to prevent accompanying rotation.

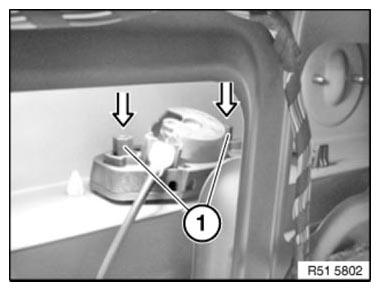

Fig 2: Pressing Counter-Supports

G06885669

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

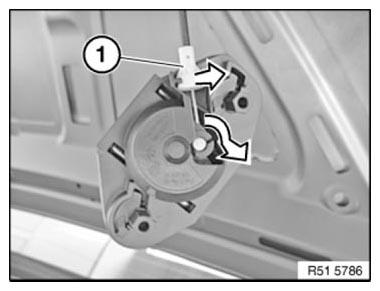

Fig 3: Feeding Out Bowden Cable Nipple

G06885670

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

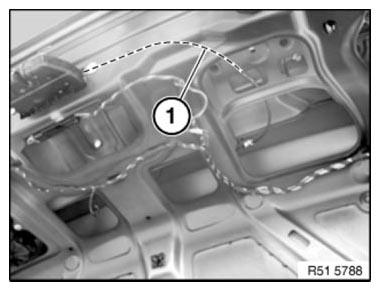

Fig 4: Identifying Bowden Cable

G06885671

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform function check with rear lid open.
