51 13 220 Removing and installing/replacing middle trim strip on rear lid

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both rear lights

Release screws (1) on inside of rear lid.

Unlock and disconnect plug connection (2) - rear lid actuation button and plug connection (3) - reversing camera.

Fig 1: Identifying Rear Lid Actuation Button And Reversing Camera Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully detach trim strip (1) from rear lid (2) with special tool 00 9 317 and remove

Installation note:

If necessary, replace damaged plastic clips (3).

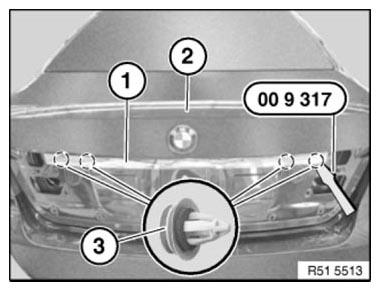

Fig 2: Detaching Trim Strip From Rear Lid Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
