51 24 004 Adjusting rear lid lock

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM FOR REAR LID

Prerequisite:

Tailgate must be correctly adjusted to fit; if necessary, ADJUST TAILGATE .

For ideal setting, refer to 41 00... BODY GAP DIMENSIONS .

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

Fig 1: Identifying Bump Stop

G06885653

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out protective cap (1).

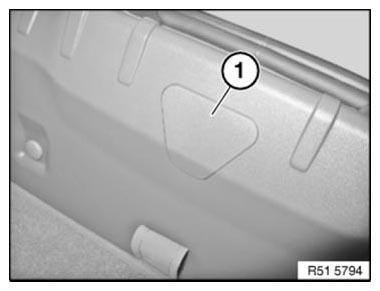

Fig 2: Identifying Protective Cap

G06885654

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws until striker (1) can still just be moved and centers itself.

IMPORTANT: Striker (1) must not brush against tailgate lock.

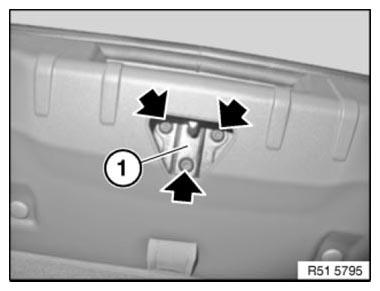

Fig 3: Locating Striker Screws

G06885655

Courtesy of BMW OF NORTH AMERICA, INC.

Close tailgate.

Check 41 00... BODY GAP DIMENSIONS and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down screws.

Tightening torque 51 24 03AZ .

Fig 4: Locating Striker Screws

G06885656

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

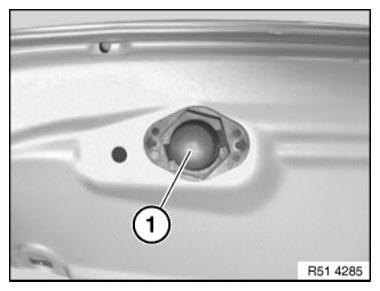

Fig 5: Identifying Bump Stop

G06885657

Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check reversing camera and if necessary RECALIBRATE .
