51 13 282 Replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM STRIP FROM ROOF FRAME

Unlock plastic mount (1) and simultaneously slide to one side.

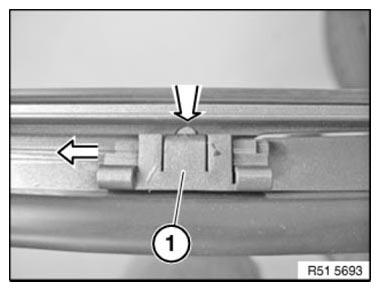

Fig 1: Removing Plastic Mount

G06885371

Courtesy of BMW OF NORTH AMERICA, INC.

Slide plastic mount (1) sideways out of trim strip.

Remove cover (2).

Installation note:

Make sure cover is correctly seated in plastic mount.

Make sure plastic mounts are correctly engaged.

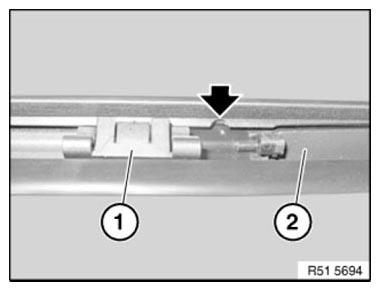

Fig 2: Identifying Plastic Mount And Cover

G06885372

Courtesy of BMW OF NORTH AMERICA, INC.

All retainers must be removed in order for seal (5) to be removed.

Glue molded part of seal (5) to trim strip (6) with Loctite 454 (sourcing reference: BMW Parts Service).

Coat rest of sealing channel of seal (7) with antiseize agent, see 3. AUXILIARY MATERIALS AND TOOLS .

Fit seal (7) and press into end position with special tool 00 9 321 (fishbone).

Fit seal (8) without antiseize agent in compressed state.

A Direction of travel, front

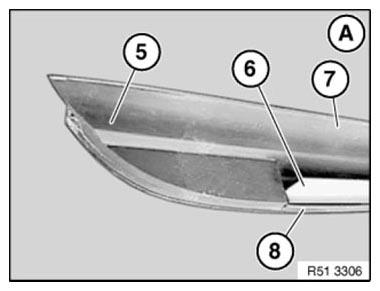

Fig 3: Identifying Trim Strip And Seals

G06885373

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

New seals (7 and 8) are longer than trim strip (6).

After installation, compress seals (7 and 8) slightly.

Cut seals (7 and 8) to length at ends to trim strip (6).

A Direction of travel, front

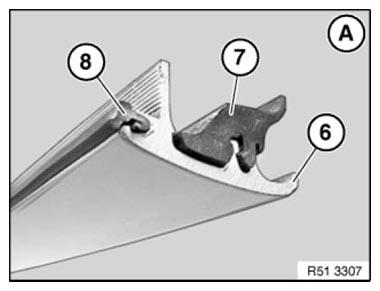

Fig 4: Identifying Trim Strip And Seals

G06885374

Courtesy of BMW OF NORTH AMERICA, INC.
