51 13 280 Removing and installing roof frame trim strip on left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work must be carried out with a second person assisting (risk of damage).

Trim strip must not be bent and seal must rest correctly on windscreen (wind noises).

First lever out trim strip at rear, then unclip remainder in upward direction and pull at front out of seal.

IMPORTANT: Replace clamps after each removal.

Observe installation location for different clamps.

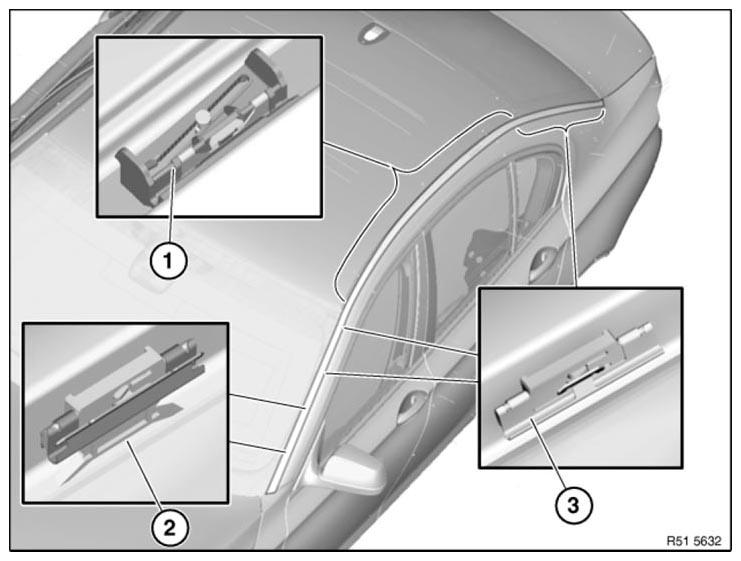

Clamps, roof frame, T-pin
Clamp, A-pillar, bottom, T-pin
Clamps, A- and C-pillars

Fig 1: Identifying Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First push trim strip at front into seal, clip in at rear flush with edge and then clip in remainder.

Lock of clamps must not be damaged.

Seal and trim strip must not be damaged. If necessary, replace FAULTY SEAL OR TRIM STRIP .

Emergency strategy if T-bolt is broken:

REPAIRING CLIPS FOR ROOF STRIP
