51 43 230 Removing and installing/replacing trim on C-pillar at bottom left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BELT OUTLET TRIM
Remove ENTRANCE COVER STRIP
Remove backrest. See REMOVING BACKREST FOR REAR SEAT (ELECTRIC) or REMOVING BACKREST REAR SEAT (NON-ELECTRIC) .

Release plastic nuts (1).

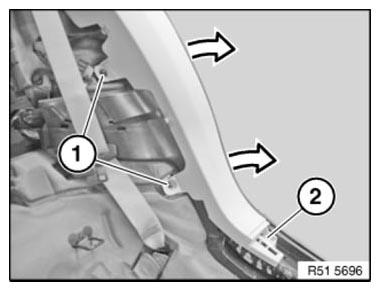

Fig 1: Identifying C-Pillar Trim Panel Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nuts (1).

Lever out clip (2).

Unclip trim.

Installation note:

If necessary, replace faulty clip and retainers on trim.

Make sure trim is correctly seated in seal.

Fig 2: Removing Clip

Courtesy of BMW OF NORTH AMERICA, INC.
