51 43 310 Removing and installing belt feed cover

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR ROOF PILLAR
Remove REAR SEAT .

Release screw (1).

Tightening torque 72 11 22AZ .

Installation note:

End fitting is coded against incorrect assembly.

Fig 1: Identifying Belt Feed Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

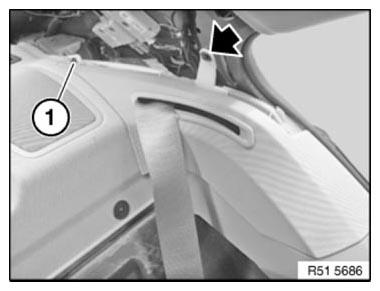

Release screw (1).

Release expanding rivet.

Remove cover.

Fig 2: Identifying Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

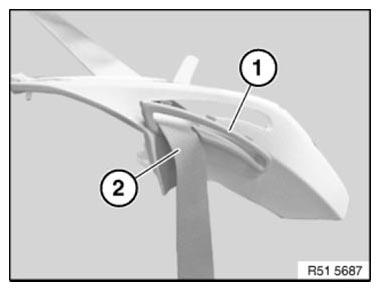

Lever out seat belt finisher strip (1) and feed out seat belt strap (2).

Fig 3: Identifying Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.
