51 12 156 Removing and installing/replacing rear bumper trim: Removing
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

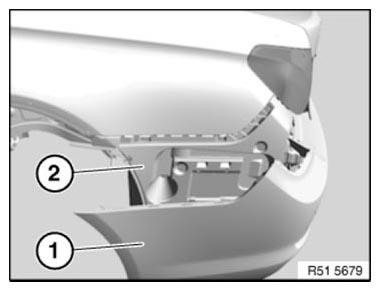

- Starting from the outside, carefully snap out the individual guide tabs on left and right
- Pull bumper trim (1) straight towards rear with aid of a 2nd person
- If necessary, disconnect plug connections
- Pull off bumper trim (1)
Installation note:
PROTECTIVE FILM FOR PREVENTING PAINT ABRASION in the area of the invisible joint (side frame) must not de damaged or missing.

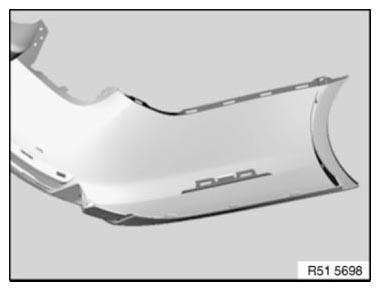

Guide tabs at top and bottom must not be damaged!
Observe 41 00... BODY GAP DIMENSIONS .
