51 12 156 Removing and installing/replacing rear bumper trim: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To ensure effective operation of the LANE CHANGE WARNING SENSOR (HC2 sensor):

there must be no mechanical damage (e.g. dents) and no body repair work with filler or painting (several coats) must be carried out in a 10 cm radius about the left or right sensor on the bumper panel
no stickers must be attached in the area of the sensor

Necessary preliminary work:

Remove COVER ON REAR BUMPER TRIM

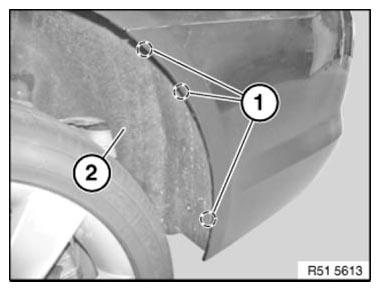

Release screws (1) on wheel arch cover at rear (2).

Fig 1: Identifying Rear Wheel Arch Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

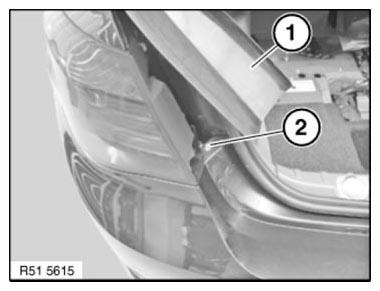

Raise rear light cover (1).

Lever out left expanding rivet (2) underneath.

Fig 2: Identifying Rear Light Cover And Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

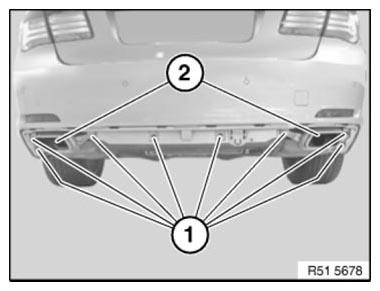

Release screws (1).

If necessary, remove exhaust system trims (2).

Fig 3: Identifying Exhaust System Trims With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper trim (1) is locked at sides in mounting holder (2) and must be unlocked for removal purposes (risk of damage).
