51 12 164 Removing and installing/replacing trim on bumper trim

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

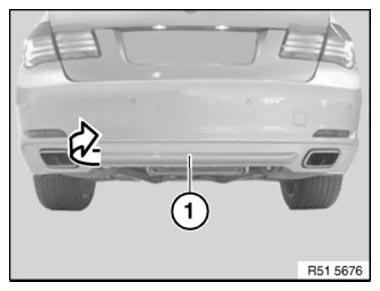

Fig 1: Removing Trim On Rear Bumper Trim
G06885352Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All retaining lugs and guides on trim for bumper trim at rear (1) must not be damaged.

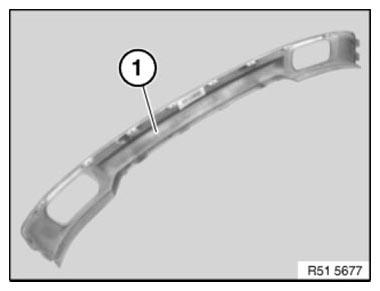

Fig 2: Identifying Rear Bumper Trim
G06885353Courtesy of BMW OF NORTH AMERICA, INC.
