51 16 216 Removing and installing (replacing) storage compartment
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM ON REAR CENTER CONSOLE

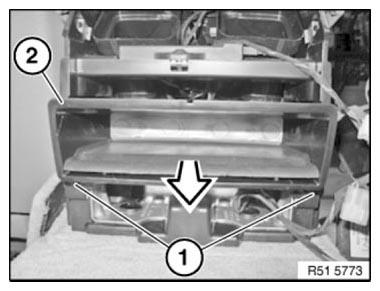

Release screws (1).
Remove storage compartment (2) in direction of arrow.
