51 16 202 Removing and installing/replacing front cup holder

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE TRIM

Release screws (1).

Remove front cup holder (2) from center console (3).

Installation note:

Make sure front cup holder (2) is correctly seated.

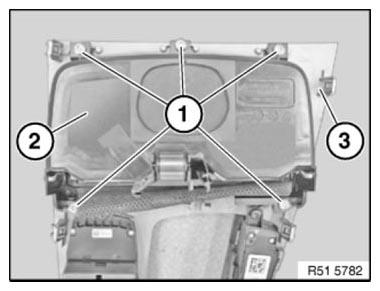

Fig 1: Identifying Front Cup Holder, Center Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
