51 16 160 Removing and installing/replacing center console trim
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
Carry out the following operation carefully so as to avoid damage.
Tape off center console trim in work area.

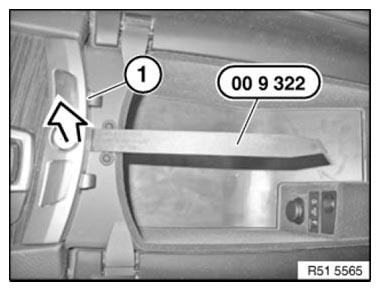

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.
Release screws (1).
IMPORTANT:
First tighten screws hand-tight.
Tightening torque 51 16 9AZ .

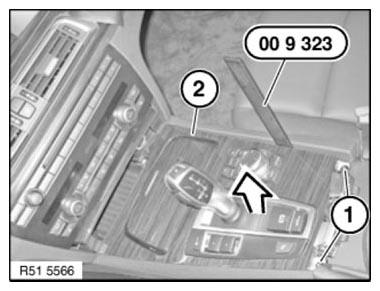

Carefully lever out center console trim (2) with special tool 00 9 323 .
Disconnect plug connections underneath.
Remove center console trim (2) in direction of arrow.

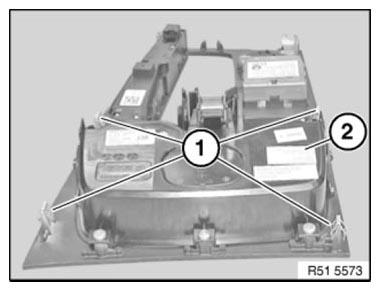

Installation note:
If necessary, replace retainers (1).
Make sure center console trim (2) is correctly seated.
Replacement:
- Remove CENTER CONSOLE OPERATING UNIT
- Remove FRONT CONTROLLER .
