51 16 150 Removing and installing (replacing) front storage tray (ashtray)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove CENTER CONSOLE TRIM
NOTE:
- Partially remove middle instrument panel decorative trim.
- Remove ashtray insert.

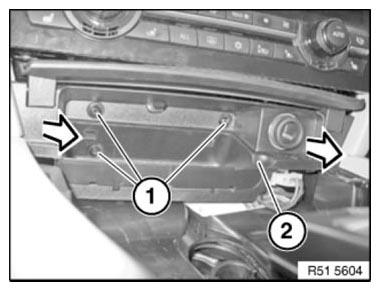

Release screws (1).
Remove front storage tray (2) in direction of arrow.
Replacement:
Transfer 12-V charging socket (cigarette lighter) in storage compartment. See REMOVING/INSTALLING/REPLACING 12V SOCKET IN FRONT STORAGE COMPARTMENT (ASHTRAY) .
