51 16 040 Removing and installing/replacing housing on left or right outside mirror (2009-2011; 2012-2015 version 1)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RETAINING RING ON EXTERIOR MIRROR
Remove PROTECTIVE CAP ON EXTERIOR MIRROR
Remove MIRROR ADJUSTMENT DRIVE

Release screws (1). Unlock catch (2).

If necessary, disconnect the connector (3) from the Top View camera.

Remove mirror housing lower section in direction of arrow.

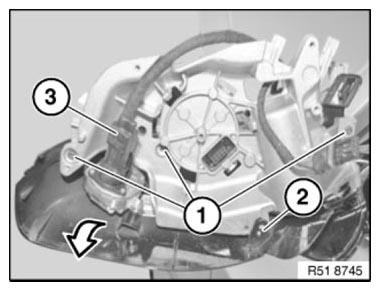

Fig 1: Removing Mirror Housing Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.

Replacement

For version with Top View camera only:

Move TOP VIEW CAMERA

Fig 2: Identifying Catches, Screw Holes And Housing

Courtesy of BMW OF NORTH AMERICA, INC.
