51 16 040 Removing and installing/replacing housing on left or right exterior mirror (2012-2015 version 2)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RETAINING RING ON EXTERIOR MIRROR
Remove PROTECTIVE CAP ON EXTERIOR MIRROR
Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

If necessary, disconnect the connector from the top view camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

The latch mechanisms (2) on the housing (3) must not be damaged or missing.

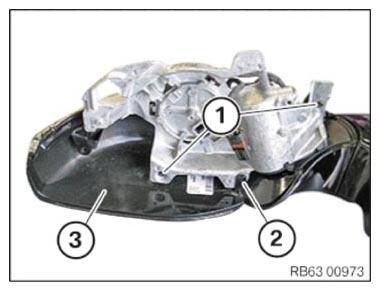

Fig 1: Identifying Latch Mechanism, Housing, And Screws

G10062688

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Installation note:

The bore holes (1) on the housing (3) must not be damaged or missing.

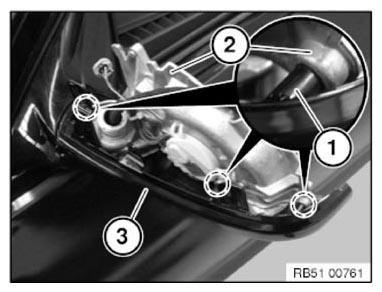

Fig 2: Identifying Exterior Mirror, Housing And Screw Holes

G10062689

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove the turn indicator (1) from the housing (2) in the direction of the arrow.

For replacements with top view camera equipment specification:

Remount the TOP VIEW CAMERA

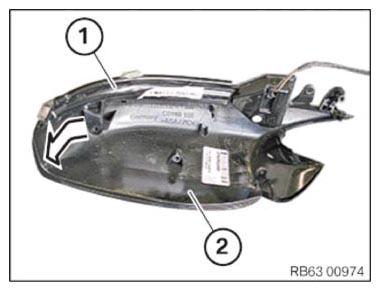

Fig 3: Removing Turn Indicator
Courtesy of BMW OF NORTH AMERICA, INC.
