51 72 000 Replacing edge protection for left or right front door
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary work:
- Remove TRIM FOR ROOF PILLAR AT FRONT
- Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR
- Remove REAR DOOR SILL COVER STRIP
- Remove TRIM PANEL FOR DOOR PILLAR (bottom)

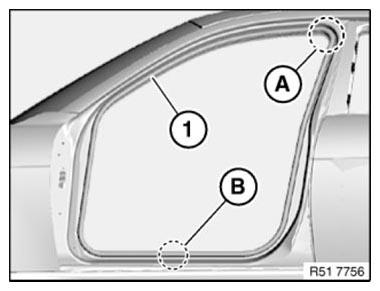

Detach edge protection (1).
Installation note:
Install edge protection (1) starting in area "A".
When installed, the location of joint of edge protection (1) must be in area "B".
Pull off mounting cord starting in area "B".
