51 43 201 Removing and installing/replacing trim panel for roof pillar at front left or right (A-pillar)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

IMPORTANT: Do not use any sharp-edged tools to remove trim panel (risk of damage to head airbag).

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

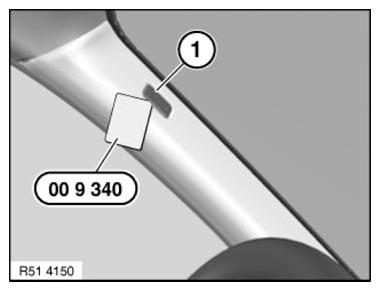

Unclip and remove sealing cap (1) using special tool 00 9 340 .

Fig 1: Removing Sealing Cap Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 43 1AZ .

Unclip trim panel (2) in direction of arrow.

Feed out trim panel (2) from dashboard and remove.

Fig 2: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

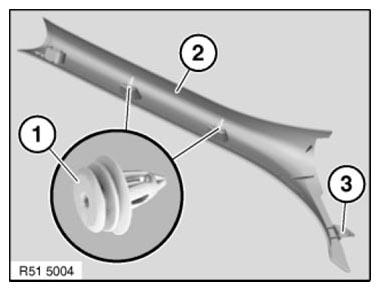

Installation note:

If necessary, replace faulty clips (1).

If necessary, lever out clips (1) remaining in bore hole and fit to trim panel (2).

Clip trim panel (2) with latch mechanism (3) into dashboard.

Position trim panel (2) on associated bore holes of clips (1) and clip into place.

Fig 3: Identifying Clip, Trim Panel And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
