51 45 075 Removing and installing/replacing support for dashboard

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove INSTRUMENT PANEL TRIM
Unclip wiring harness
Only if equipped with Head-Up Display optional equipment:
- Remove HEAD-UP DISPLAY

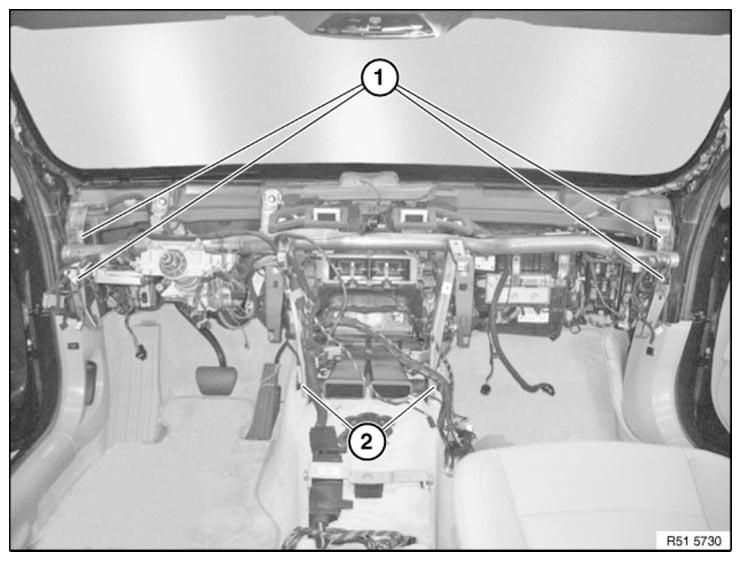

Fig 1: Identifying A-Pillar Nut And Tunnel Screws

G06885868

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on A-pillar.

Tightening torque 51 45 2AZ .

Release screws (2) on tunnel.

Tightening torque 51 45 3AZ .

Release screws (1) on steering column support (2).

Tightening torque 51 45 1AZ .

Release screws (3) on steering column (4).

Tightening torque 32 31 1AZ .

Fig 2: Identifying Steering Column Support, Steering Column And Screws

G06885869

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on earth connection.

Release screw (2) on dashboard trim holder (3).

Fig 3: Identifying Trim Holder And Screws

G06885870

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on dashboard trim holder (2).

Remove dashboard support and if necessary feed out through front passenger door.

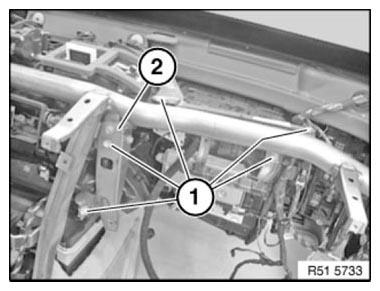

Fig 4: Identifying Dashboard Trim Holder And Screws

G06885871

Courtesy of BMW OF NORTH AMERICA, INC.
