51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TOP REAR CONNECTION .

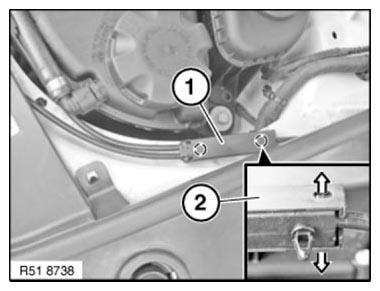

Unclip clutch housing Bowden cable (1) at marked points.

Installation note:

Clips must not be damaged.

To open up clutch housing cover, lever up cover (2) in direction of arrow.

Fig 1: Removing Clutch Housing Bowden Cable

G06885647

Courtesy of BMW OF NORTH AMERICA, INC.

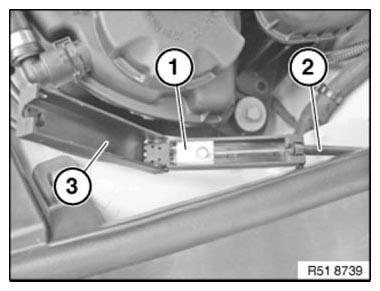

Feed rear Bowden cable (2) out of sliding carriage (1) and clutch housing (3).

Fig 2: Identifying Sliding Carriage, Rear Bowden Cable And Clutch Housing

G06885648

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

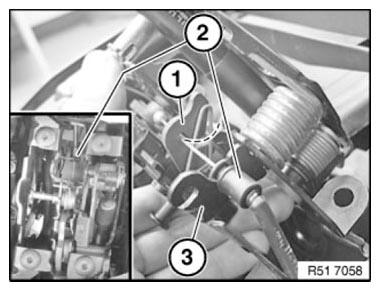

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

Repeat procedure on second bonnet lock.

Unthread cable for bonnet locks and remove.

Fig 3: Identifying Bowden Cable, Release Lever And Catch Carrier

G06885649

Courtesy of BMW OF NORTH AMERICA, INC.
