51 64 020 Removing and installing/replacing upper rear connection

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!

Only perform work after engine has cooled down.

IMPORTANT: Driving without the connection is not permitted. (risk of damage to the body).

Necessary preliminary work:

Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area

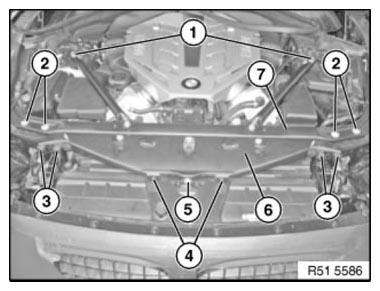

Release screws (1).

Tightening torque 51 61 1AZ .

Unfasten screws (2).

Tightening torque 51 61 3AZ .

Release screws (3).

Tightening torque 51 61 5AZ .

Release screws (4).

Release screw (5).

Tightening torque 51 61 6AZ .

Fig 1: Identifying Upper Rear Connection Screws

G06885971

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Raise front/rear connection (1) and disengage Bowden cable (2) at marked points.

Remove front/rear connection (1) with suspension cross-braces.

Fig 2: Identifying Front/Rear Connection And Bowden Cable

G06885972

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify SUSPENSION CROSS-BRACE ON LEFT AND RIGHT .

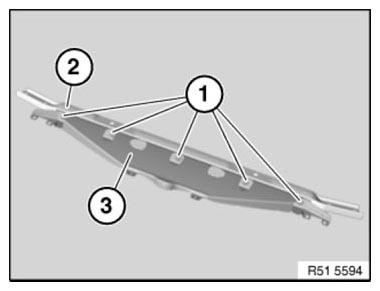

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation note:

Guide lug secures rear connection (2) to front connection (3).

Fig 3: Identifying Screws, Rear And Front Connection

G06885973

Courtesy of BMW OF NORTH AMERICA, INC.

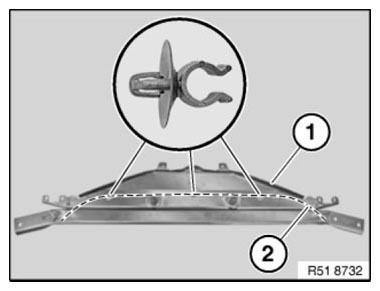

Only if replacing front connection (1):

Modify retaining clip (2).

Fig 4: Identifying Front Connection And Retaining Clip

G06885974

Courtesy of BMW OF NORTH AMERICA, INC.
