51 48 070 Removing and installing/replacing sound insulation on left or right rear door

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

With roller sun blind optional extra only:

Remove engine.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 1: Identifying Door Screws

G06885956

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

G06885957

Courtesy of BMW OF NORTH AMERICA, INC.

Feed lines out of cable holder (1).

Disconnect plug connection (3) at door lock.

Release quick-connect couplings (2).

Remove sound insulation (4).

Installation note:

If necessary, replace cable holders (1).

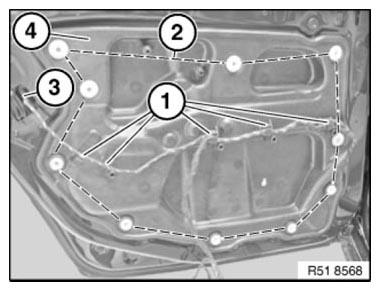

Fig 3: Identifying Holder, Plug Connection, Quick-Connect Couplings And Sound Insulation

G06885958

Courtesy of BMW OF NORTH AMERICA, INC.
