51 41... Replacing speaker cover on left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT MID-RANGE SPEAKER .

Open plastic welded joints.

Unlock latch mechanisms (1).

Remove speaker cover (2).

Fig 1: Identifying Latch Mechanisms And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new speaker cover (2).

Latch mechanisms (1) must be correctly seated in corresponding guides.

Secure clamps (3) as pictured to all marked plastic guides.

Speaker cover (2) must be secured without play.

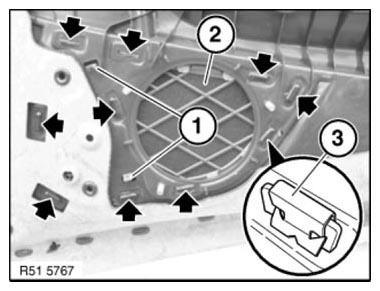

Fig 2: Identifying Latch Mechanisms, Clamps And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.
