65 13 070 Removing and installing/replacing speakers (midrange speaker, front door left and right)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove front DOOR TRIM PANEL .

NOTE: Secure speaker against falling out.

Release nuts (1) and remove speaker (2) in direction of arrow from door trim (3).

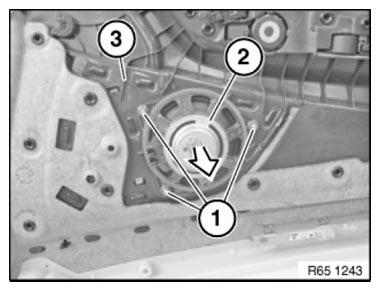

Fig 1: Identifying Nuts, Speaker And Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.
