51 21 126 Removing and installing/replacing carrier for left or right outside door handle without lock cylinder: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER HANDLE
Remove TRIM ON WINDOW FRAME OF FRONT DOOR

Close side window (1); in so doing, do not crush or pinch rubber guides (2).

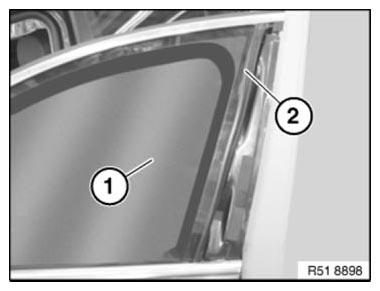

Fig 1: Identifying Side Window And Pinch Rubber Guides

G06885540

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from cover (2).

Remove cover (2).

Installation note:

Insert rubber seal (3) correctly in guides on door outer skin.

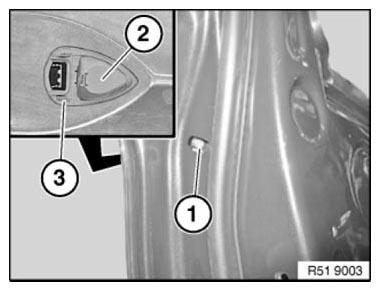

Fig 2: Identifying Screw, Cover And Rubber Seal

G06885541

Courtesy of BMW OF NORTH AMERICA, INC.

Release fixing screw (1).

Remove plastic guide underneath.

Installation note:

Correctly insert retaining lug (2) and move to stop.

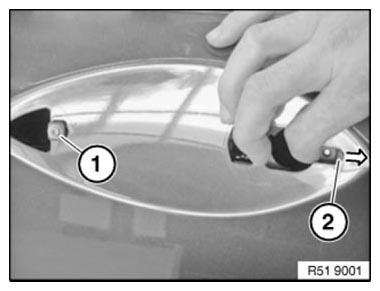

Fig 3: Inserting Retaining Lug

G06885542

Courtesy of BMW OF NORTH AMERICA, INC.

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation note:

Ensure correct Bowden cable installation position.

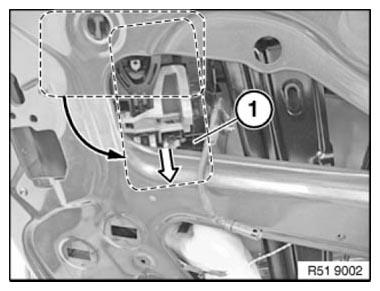

Fig 4: Turning Carrier For Door Outside Handle

G06885543

Courtesy of BMW OF NORTH AMERICA, INC.
