51 11 050 Removing and installing/replacing carrier for front bumper trim: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER TRIM .
Remove fanfare horn on left and right. See REMOVING LEFT FANFARE HORN and REMOVING RIGHT FANFARE HORN .

Remove impact absorber (1) towards front.

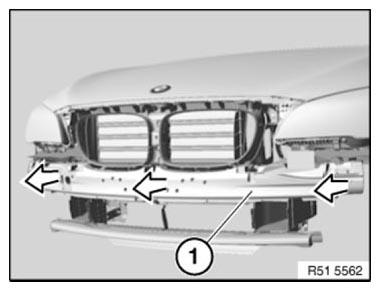

Fig 1: Removing Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If ACC optional extra is installed:

Release screws (3) on ACC sensor bracket (1).

Tightening torque: 66 31 1AZ .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor bracket (1).

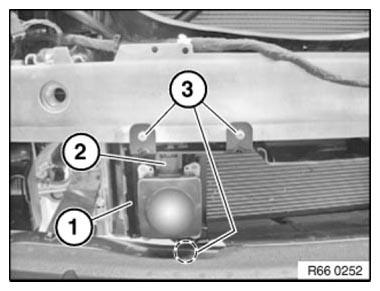

Fig 3: Identifying ACC Sensor Bracket, Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 51 11 4AZ .

Unclip wiring harness (4) at marked points.

If necessary, unlock and disconnect plug connections (5) on short-range sensors.

Remove carrier (1) towards front.

Installation note:

Make sure locking sleeve (3) is correctly seated in carrier (1).

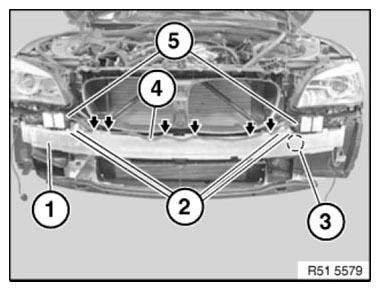

Fig 4: Identifying Wiring Harness, Plug Connections, Carrier, Locking Sleeve And Screws
