61 33 050 Removing and installing/replacing left fanfare horn

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT LEFT WHEEL ARCH COVER
On vehicles with auxiliary heaters as equipment specification, remove BUMPER TRIM

Disconnect plug connection (1) and release nut (2).

Remove fanfare horn (3).

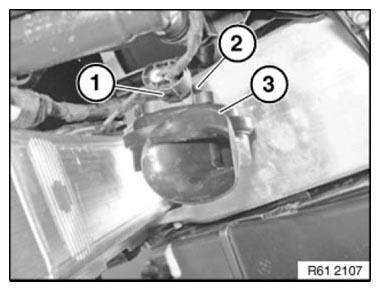

Fig 1: Identifying Fanfare Horn With Plug Connection And Nut (61 33 050)

Courtesy of BMW OF NORTH AMERICA, INC.
