51 31 242 Replacing rubber frame (bottom) for rear window
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Remove BOTH TRIM STRIPS FROM ROOF FRAME
IMPORTANT:

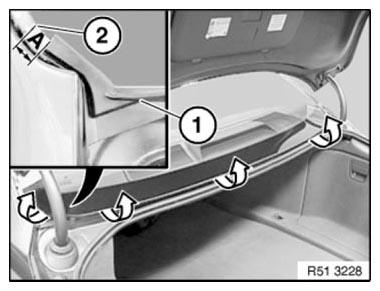

Rubber frame (1) is reinforced with an aluminium strip.
Pull off rubber frame (1) carefully in direction of arrow (rear window breakage).
NOTE:
Tear-off tab on left/right may be bonded to adhesive.
When rubber frame (1) is removed, tear-off lip on left/right may tear off and remain in vehicle.
Installation note:
Gap (A) between rubber frame (1) and rear window corner (2) must be the same on left/right.
Installation note:

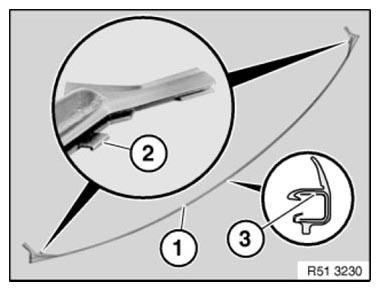

Replacement of rubber frame without rear window removal:
Detach tear-off tabs (2) from rubber frame (1).
If adhesive has managed to get onto bridge, this area must be cut out partially.
Replacement of rubber frame with removed or new rear window:
Fit rubber frame with tear-off tabs (2).
3 Aluminium strip
