51 75 010 Removing and installing/replacing left or right steering assembly cover

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT UNDERBODY PROTECTION

Unscrew all bolts.

Lever out expanding rivets (1).

Removing steering assembly cover (2).

Installation note:

If necessary, replace faulty expanding rivets (1).

Make sure steering assembly cover (2) is correctly seated.

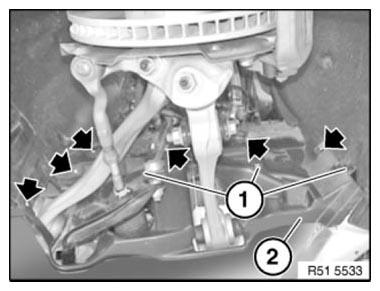

Fig 1: Identifying Steering Assembly Cover And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

From April 09 the snap fasteners are discontinued and replaced by a conventional screw connection.
