51 47 490 Removing and installing/replacing front underbody protection
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

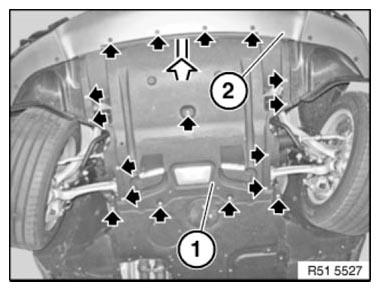

Graphic is only an example. Detail deviations depending on model or engine version are possible.
Unscrew all bolts.
Remove underbody protection (1) in direction of arrow from bumper trim (2).
Installation note:
Make sure underbody protection (1) is correctly seated.
