51 47 491 Removing and installing/replacing rear underbody protection
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION
Unscrew all bolts.

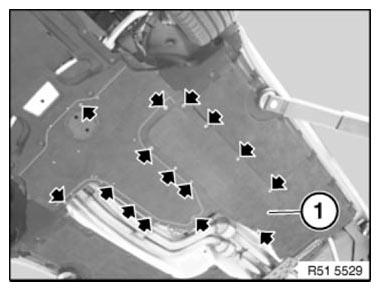

Remove underbody protection (1).
Installation note:
Make sure underbody protection (1) is correctly seated.
