51 47 312 Replacing footrest for front passenger compartment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL MECHANISM .

NOTE: Footrest (1) is bonded with carpet along line (2).

Adhesive bead must remain on carpet (risk of damage).

Preheat footrest (1) with hot air blower and therefore loosen adhesive bead from footrest (1).

If necessary, tension footrest (1) with panel wedge and apply heat to pull off inwards.

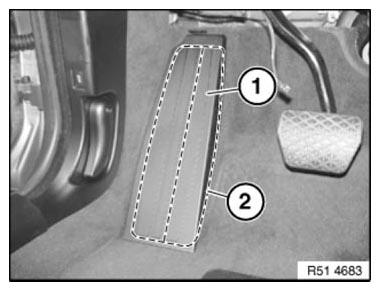

Fig 1: Identifying Footrest And Carpet Along Line (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If required, preheat footrest (1) with hot air blower and apply adhesive bead along line (2) with a hot-glue gun.

Fit footrest (1) to carpet and bond.

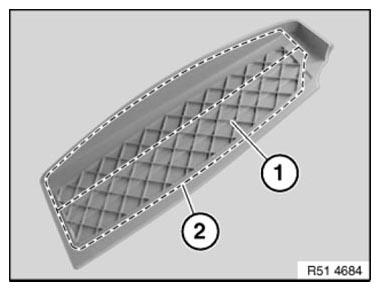

Fig 2: Identifying Preheat Footrest And Adhesive Bead Applying Along Line

Courtesy of BMW OF NORTH AMERICA, INC.
