24 30 100 Replacing oil accumulator (GA8HP45Z) (N55)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
IMPORTANT:
Remove transmission oil sump only after it has cooled down.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the automatic transmission.
Installation note:
The transmission oil sump must be renewed every time it is removed.
IMPORTANT:
When the hydraulic impulse storage is exchanged, the spring can be relaxed in pulses due to a mechanical fault in the hydraulic impulse storage, resulting in a sudden escape of oil.
Necessary preliminary tasks:
- Remove TRANSMISSION OIL SUMP .
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.

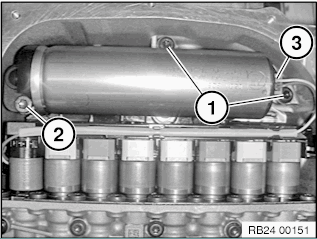

Release screws (1) (M6x20).
Release screw (2) (M6x59).
Tightening torque 24 30 5AZ .
Carefully unlock cable connector (3) with screwdriver.
Carefully pull out oil accumulator.
IMPORTANT:
Mounting bolts of oil accumulator must
be replaced after removal.
