24 00 050 Installing replacement transmission (GA6HP19Z) (N54)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
Drain automatic transmission oil at oil drain plug.
Tightening torque: 24 11 2AZ .
IMPORTANT:
After completion of work, program transmission control unit.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste-disposal regulations
IMPORTANT:
- Before installing replacement transmission, always FLUSH TRANSMISSION OIL COOLER TOGETHER WITH LINES .
IMPORTANT:
After completion of work, check TRANSMISSION OIL LEVEL .
Replacement transmission is supplied filled with transmission oil.
Use only approved TRANSMISSION OIL .
Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove AUTOMATIC TRANSMISSION

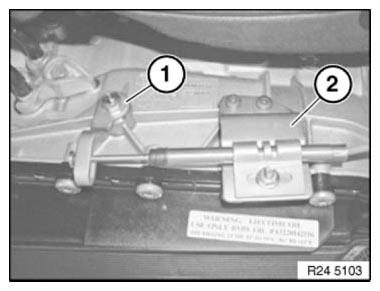

Convert selector lever (1).
Tightening torque 24 51 1AZ .
Modify holder (2).

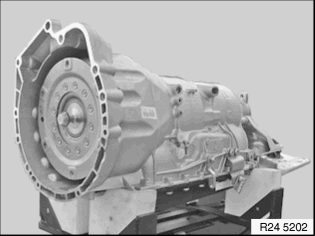

Convert transportation lock.
Convert all cable holders.
Convert all seal plugs.
Convert protective cap on output shaft.
IMPORTANT:
After removing transportation lock, secure torque converter against slipping out.
Transmission identification:
- On type plate
