24 13 013 Replacing output flange shaft seal (GA6HP19Z) (N54)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove underbody protection at front and rear. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR UNDERBODY PROTECTION .
Remove COMPLETE EXHAUST SYSTEM
Remove TRANSMISSION CROSS-MEMBER
Remove PROPELLER SHAFT

Release transmission support block from transmission.

Tightening torque 22 32 1AZ .

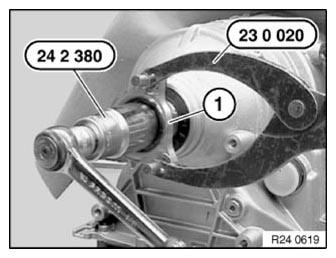

Grip output flange (1) with special tool 23 0 020 .

Release nut with special tool 24 2 380 .

Tightening torque: 24 13 1AZ .

Installation note:

Replace nut and secure with a mandrel (8 mm) by caulking.

Fig 1: Removing Output Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Detach output flange from output shaft.

Remove spacer.

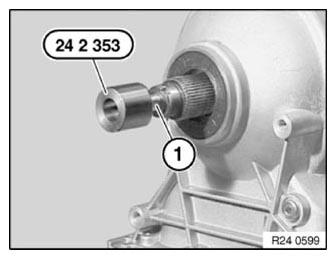

Attach special tool 24 2 353 to output shaft (1).

Fig 2: Attaching Special Tool (24 2 353) To Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

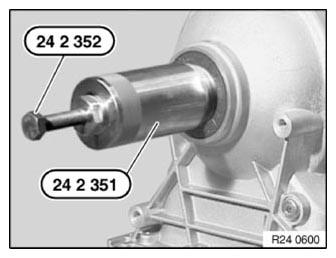

Screw in special tool 24 2 351 until it is firmly connected with shaft seal.

Pull out radial shaft seal by screwing in special tool 24 2 352 .

Fig 3: Pulling Out Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

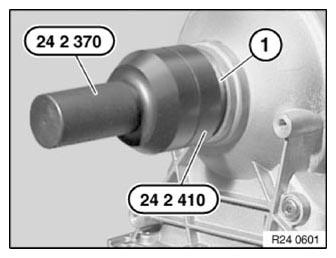

Oil sealing lip of radial seal (1). Drive in radial seal (1) with special tool 24 2 370 and adapter ring 24 2 410 as far as it will go.

Fig 4: Installing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
