34 41 250 Removing and installing/replacing expander for parking brake shoes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove PARKING BRAKE SHOES
After completing repair work: ADJUST PARKING BRAKE

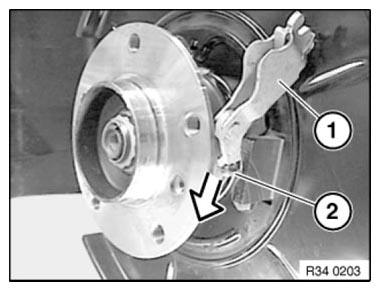

Pull brake shoe expander (1) forward, disconnect parking brake Bowden cable (2) and remove brake shoe expander.
